Description
I.Basic Parameters：
Raise:3m - 17m
Speed:0.5m/s
Angle:30
Step Width:1000mm / 800mm / 600mm
Parallel Level Step:3 / 4
II.Optional function
1:Handrail Biacket height 900mm/1000mm(option);
2:Speed 0.45m/s or 0.5 m/s;
3:Middle support none/
4:Separate
5:Stainless Stell Step/Aluminum Alloy Step (option);
6:VVVF/auto start(option);
7:Auto lubrication( option);
8:Handrail speed monitor(option);
9:Comb light(option);
10:Skirt brush(option);
11:Fault indicator(standard)
Action:allowed to install on the slope of not more than 6 on the ramp

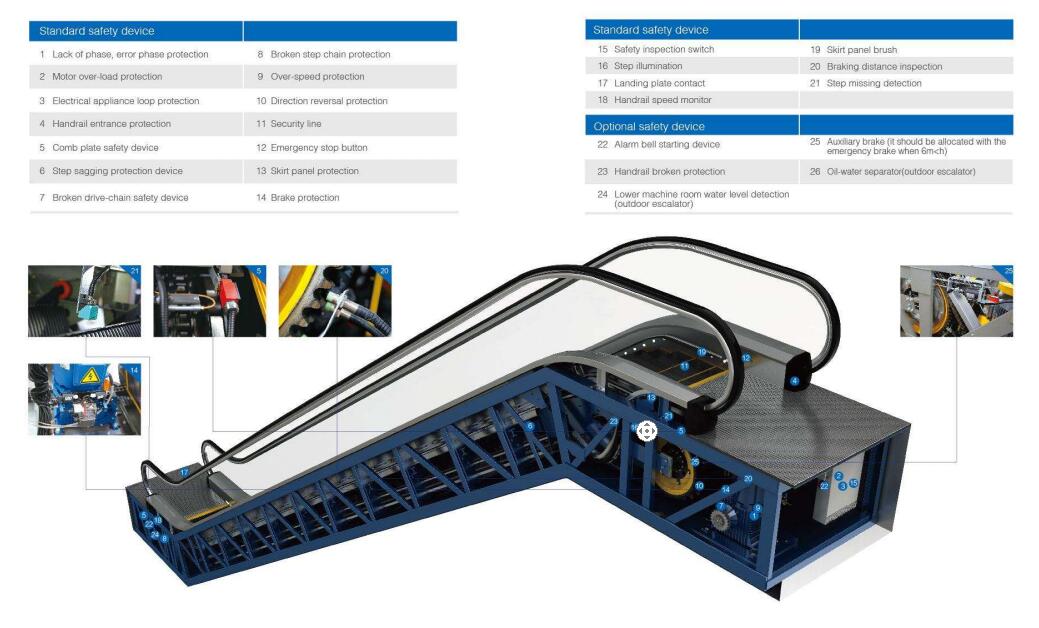

III. Safety Device

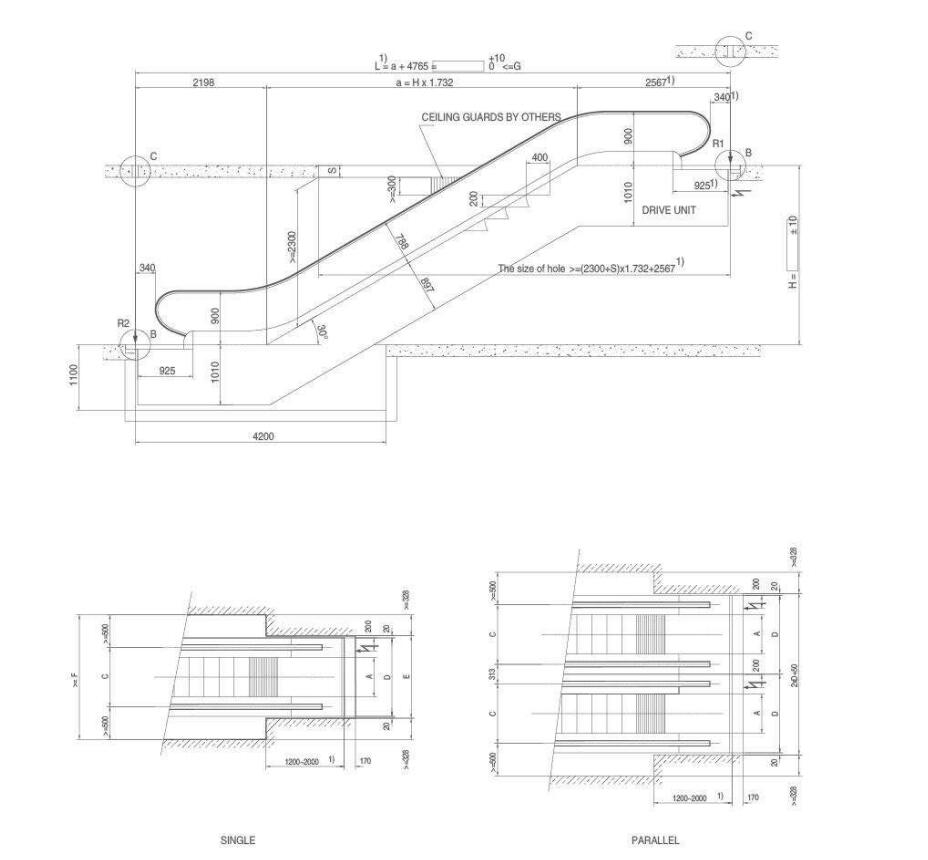

IV. Sample Drawing
